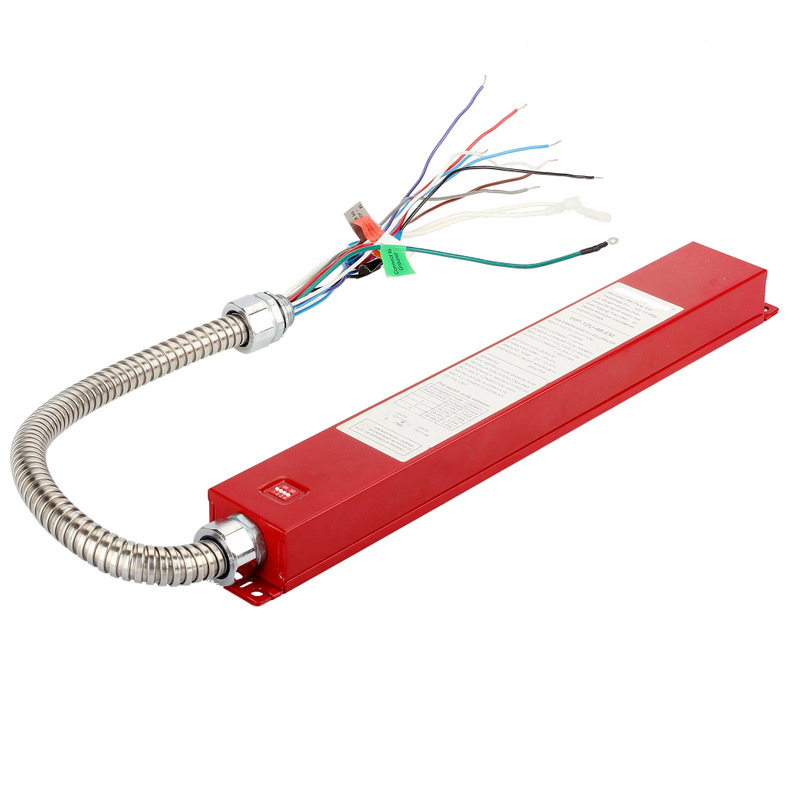

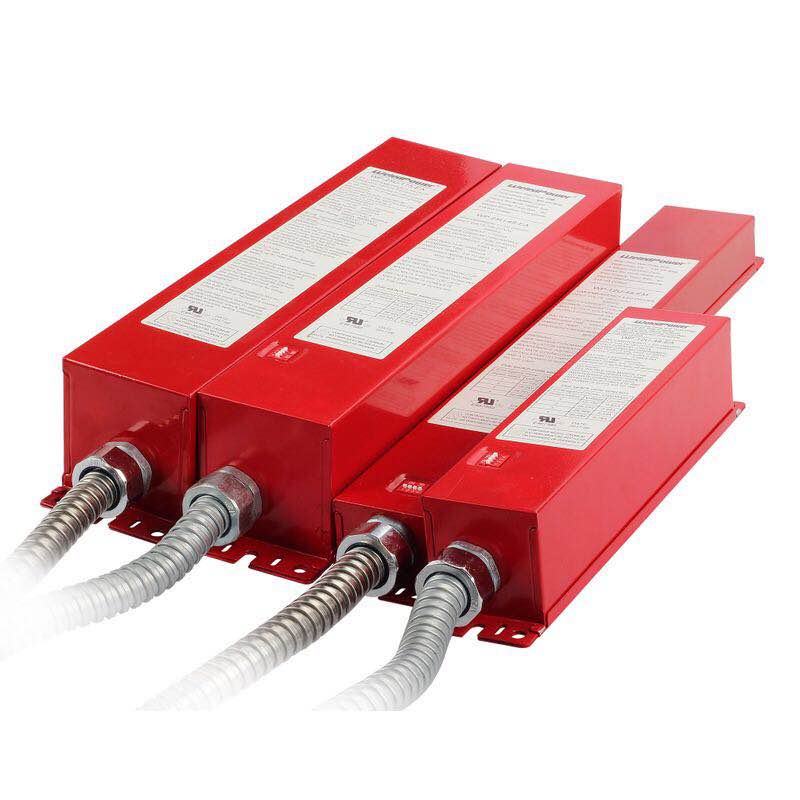

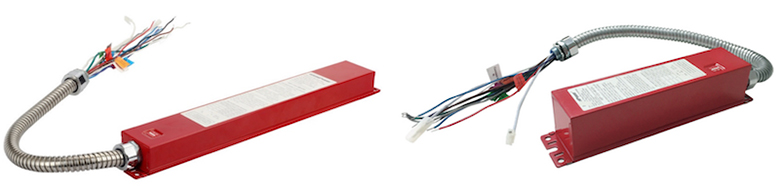

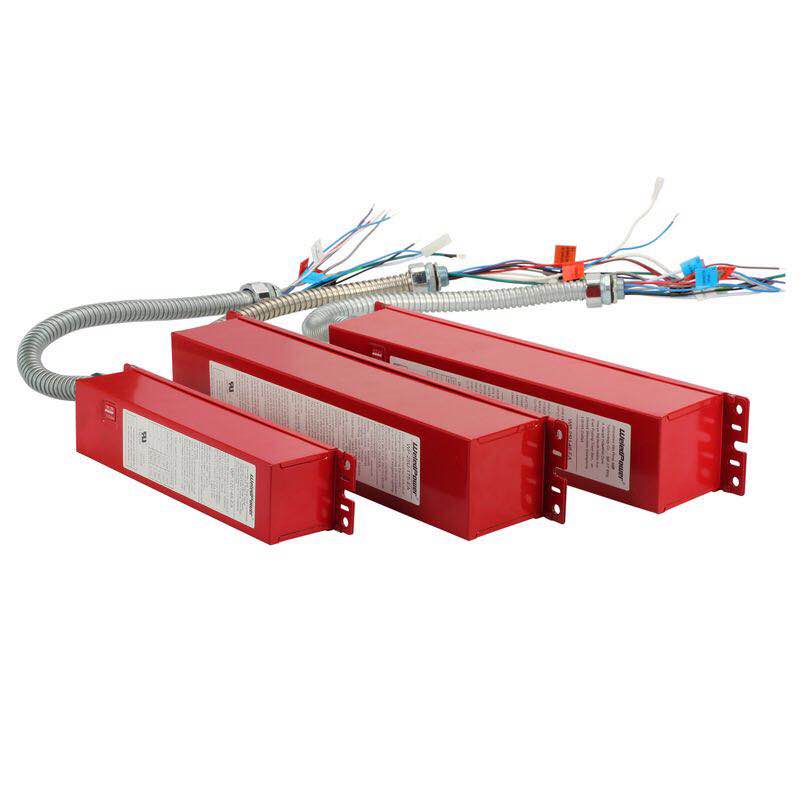

Battery Backup - Low voltage series

Technical Characteristic

Certification

Details

● Withstand voltage: I/P-O/P:3.75KVac, 5mA, 60S   I/P-G:1.5KVac, 5mA, 60S

● Insulation resistance: I/P-O/P:500Vac,>100MΩ

● Surge rating: meet to IEC61000-4-5(L-N 3KV)

● EMC: meet to EN61000-3-2,FCC Part 15B

● IP Grade: IP20

Features

● Wide input voltage range AC100-277V, to meet the needs of the vast majority of the global grid.

● 4 different current option, to meet the needs of different LED load.

● 90 minutes emergency time, meet UL requirements to emergency lighting discharge time.

● Maintenance-free NI-CD batteries, no risk of fire and explosion.

● 50,000H lifespan &5 years warranty.

Protection

• Open circuit protection: open circuit voltage max. 75V
• Shor circuit protection: hiccup mode, auot recovery.

Environment

• Operating temperature/Humidity: - 0°C ~ 50°C / 10%RH~80%RH
• Storage temperature/Humidity: - 25°C ~ 85°C / 5%RH~90%RH

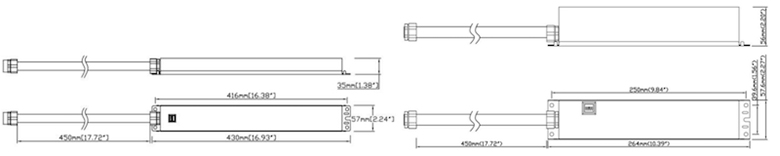

Dimension

Attention

Application

Ideal for use in hospitals and healthcare facilities, offices, schools and universities, shopping malls, and other pubilc buildings.
