XY LIGHTING LIMITED : Wholesale Luminaires Manufacturer
Auto on& off intelligent controll 170lm/w-240lm/w integrated solar LED street light. Turn clear sun energy into electrical power. Environmental friendly and cost saving. 30W-120W Solar LED Street Light suitable for 6M-12M pole. Solar streetlamp with remote control and 4 light modes, can select the most appropriate lighting ways in different places, season and weathers.
Technical Characteristic
| Item | Lumens | LED | Solar Panel | Batería | Mode De Luz | Input Voltage | CCT | CRI | Beam angle |
| XY-SS-030W | 5100lm | 80pcs | 50W 18V | 27AH 12.8V | Remote Control | 12.8V | 2700-6500K | >80 | 140˚ |
| XY-SS-040W | 6800lm | 80pcs | 65W 18V | 28AH 12.8V | Remote Control | 12.8V | 2700-6500K | >80 | 140˚ |
| XY-SS-050W | 8500lm | 160pcs | 70W 18V | 36AH 12.8V | Remote Control | 12.8V | 2700-6500K | >80 | 140˚ |
| XY-SS-060W | 10200lm | 160pcs | 80W 18V | 42AH 12.8V | Remote Control | 12.8V | 2700-6500K | >80 | 140˚ |
| XY-SS-080W | 13600lm | 160pcs | 100W 18V | 57AH 12.8V | Remote Control | 12.8V | 2700-6500K | >80 | 140˚ |
| XY-SS-100W | 17000lm | 240pcs | 130W 18V | 63AH 12.8V | Remote Control | 12.8V | 2700-6500K | >80 | 140˚ |
| XY-SS-120W | 20400lm | 240pcs | 140W 18V | 72AH 12.8V | Remote Control | 12.8V | 2700-6500K | >80 | 140˚ |
Qualification

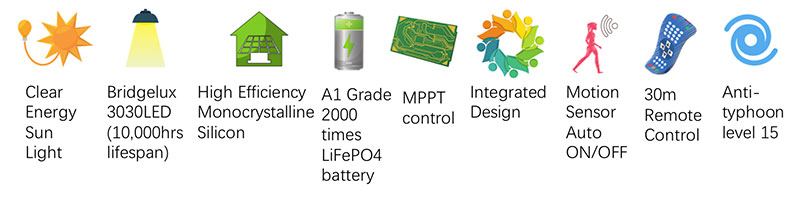

Conclusion
Light modes
Remote control, 4 light modes as below:
1)12hrs 100% brightness, at night. ( Light sensor)
2)4hrs 100% brightness + 8hrs 30% brightness, at night. (Light sensor + Time control)
3)4hrs 100% brightness + 8hrs Motion sensor control, at night.( Light sensor + Time control+ Motion sensor)

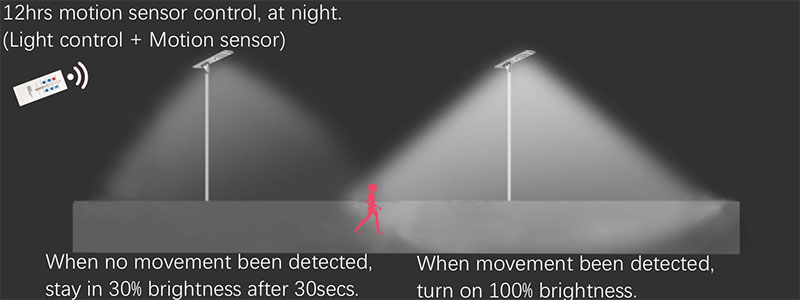

4)12hrs Motion sensor control, at night (Light sensor + Motion senor)
Default Light mode (Other 3 light modes, please see specification sheet)
Features
● All in one solar LED street light with high-pressure aluminum alloy body,complete plate maded support, Impact resistance,High temperature resistance, corrosion resistance.
● Auto on/off with intelligent MPPT controller. Great performance and easy to install.
● Solar LED Street Light adopted Light sensor + Time control(6,8,10,12hrs selectable) + Motion sensor, with remote control. long detective distance.
● Bridgelux LED,170lm/w CRI > 80, high light efficiency.
● LiFePO4 battery 2000time charge/discharge cycle.
● IP65 Waterproof rated.

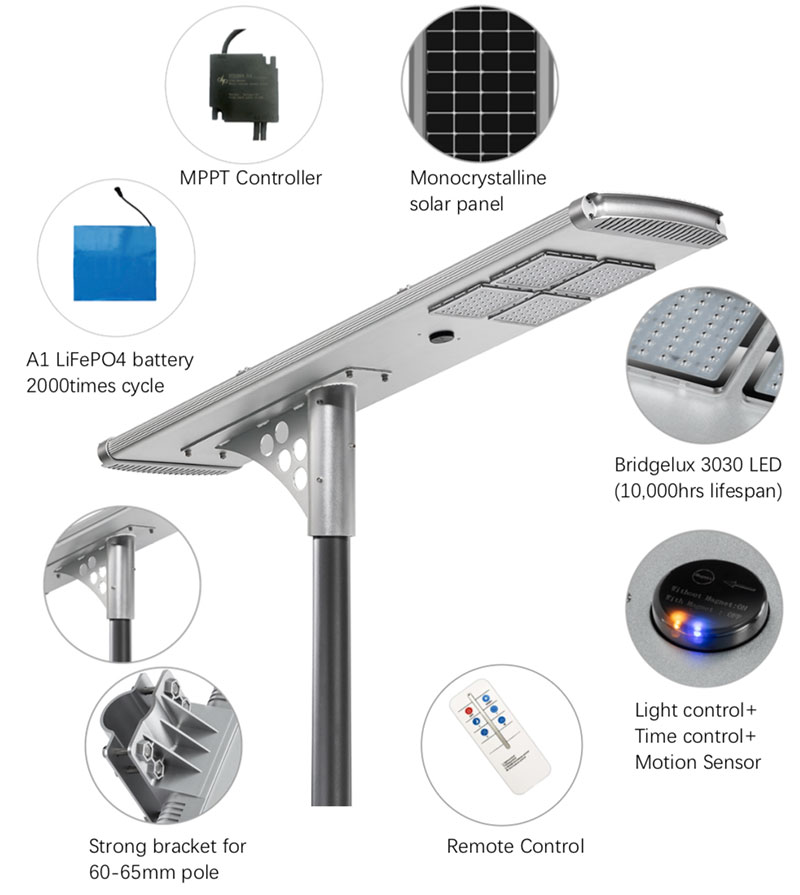

Product Details
Application
Solar LED Street Light suitable for home, gardens, walls, roads, urban streets,schools etc places.
